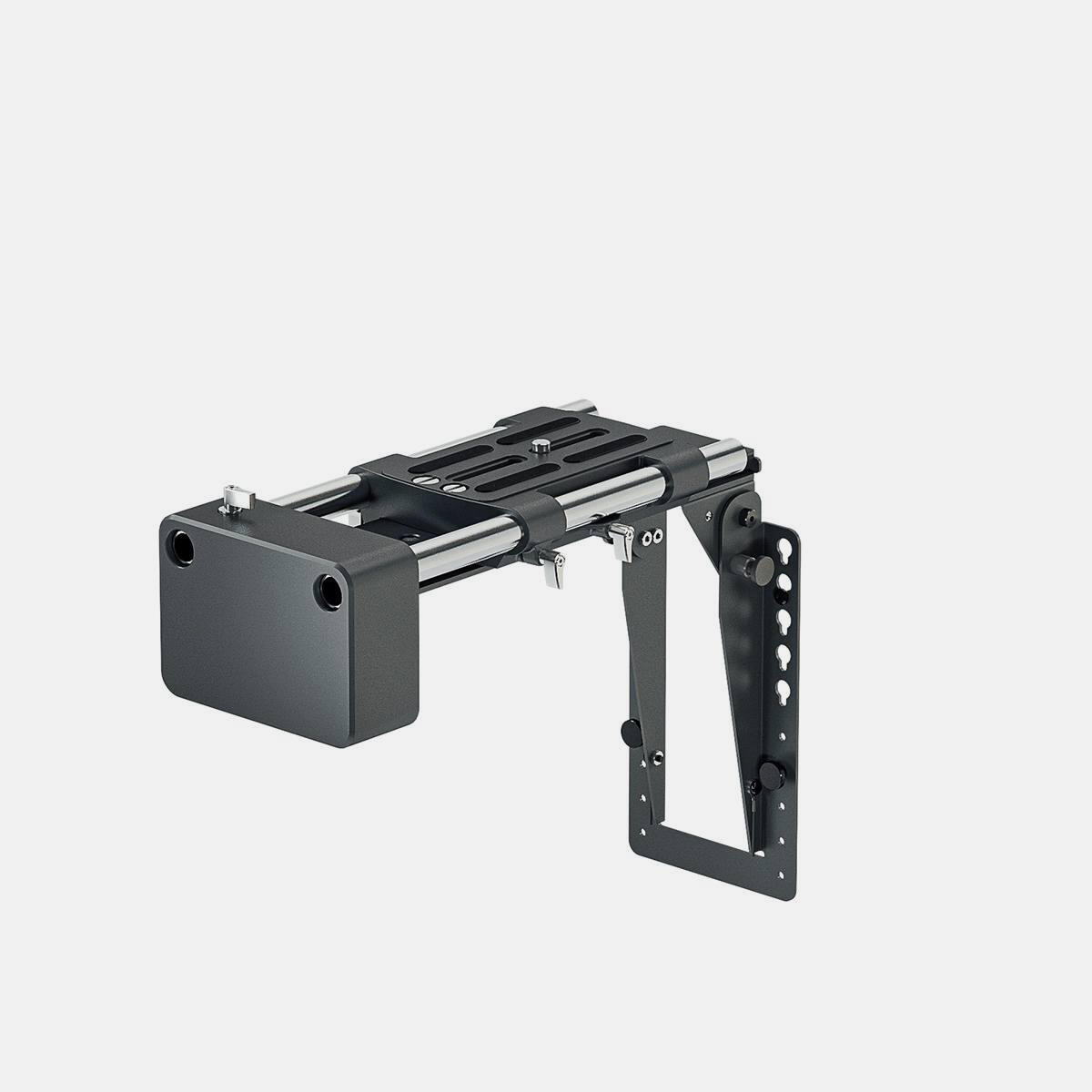

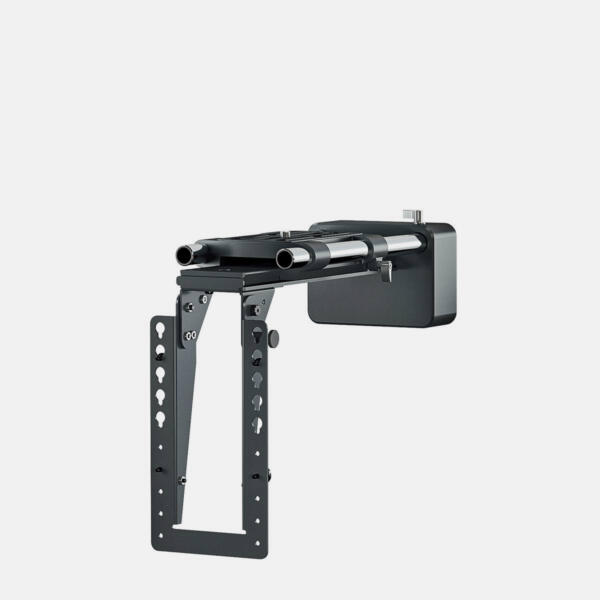

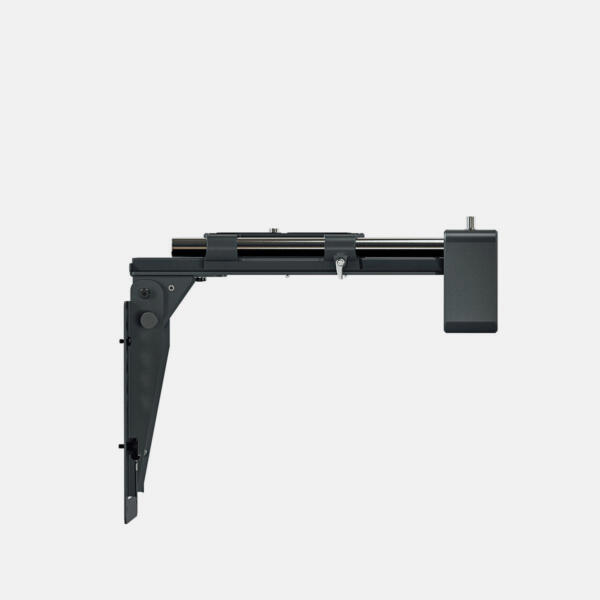

Pioneer Direct View Mounting
SKU: P7011-0903
- Mounting kit for Autocue monitors
- Positions the monitor underneath the lens
Find a local dealer
The Pioneer Direct View Mounting kit can be used to display a monitor directly to the presenter, without a through-the-lens hood and beamsplitter. It positions the monitor underneath the camera and lens where it can be viewed discreetly with only a small change in the presenter’s eyeline.
The kit can be combined with any Autocue monitor to create a direct view prompter or talent reference monitor.
| Rail Fixings | 3/8"-16, with optional 1/4"-20 inserts 3/8"-16, with optional 1/4"-20 inserts |
| Camera Carriage | Camera fixings: 2x 3/8"-16, 1/4"-20, Rod fixing: 2x 19mm rod fixings (studio standard 104mm pitch) Camera fixings: 2x 3/8"-16, 1/4"-20, Rod fixing: 2x 19mm rod fixings (studio standard 104mm pitch) |
| Monitor Fixing | VESA100 VESA100 |
| Monitor fixing positions | 5 (20mm pitch) 5 (20mm pitch) |
| Tilt postions | 2 (plus stowed) 2 (plus stowed) |
| Max monitor size | 24" 16:9 widescreen 24" 16:9 widescreen |
| Max monitor weight | 5kg 11lbs |
| Counterweight mounting rods | 2x 19mm dia. 2x 19mm dia. |
| Counterweight | 5kg 11lbs |
| Mounting Dimensions | 120 x 253 x 354mm 4.7 x 10 x 13.9" |
| Mounting Weight | 6.1kg (excluding counterweight) 13.4lbs (excluding counterweight) |
- Mounting rail
- Camera carriage
- Monitor bracket
- 19mm rod set
- 5kg counterweight
