22″ Talent Monitor & Mounting Package
SKU: P7009-0900
-
Autocue reference monitor for talent
-
Sits underneath Autocue teleprompter monitors
-
Simple VESA mounting
Find a local dealer
With this package you can add a broadcast quality talent monitor underneath the front of your Autocue teleprompter, so that talent can reference the programme output easily as they present to camera.

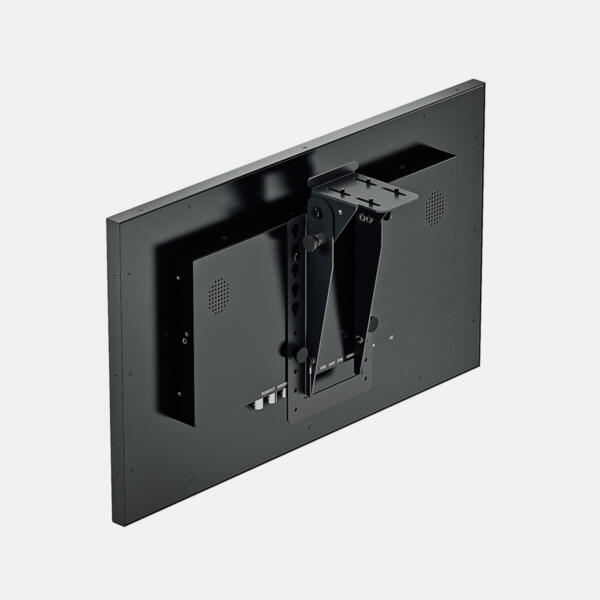

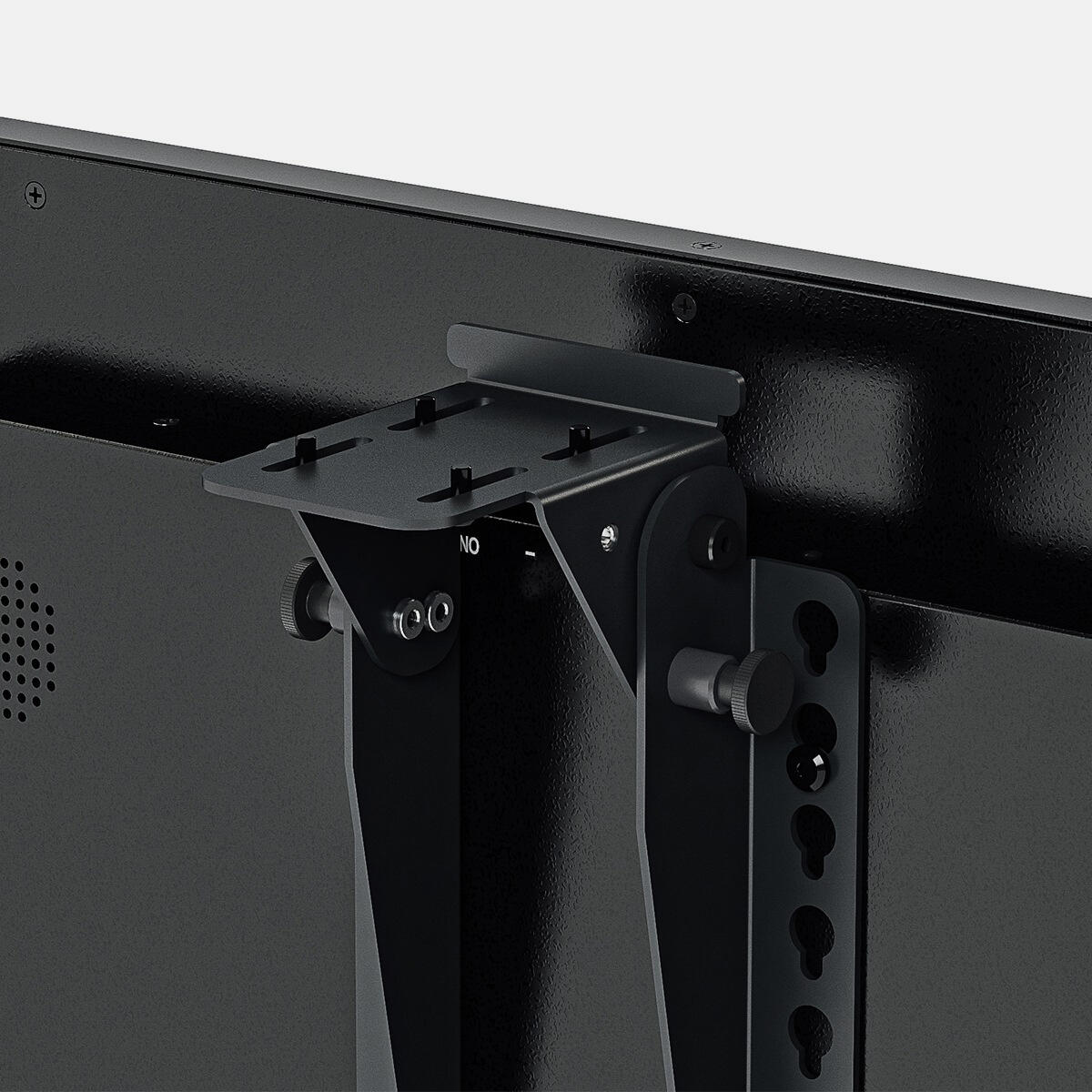

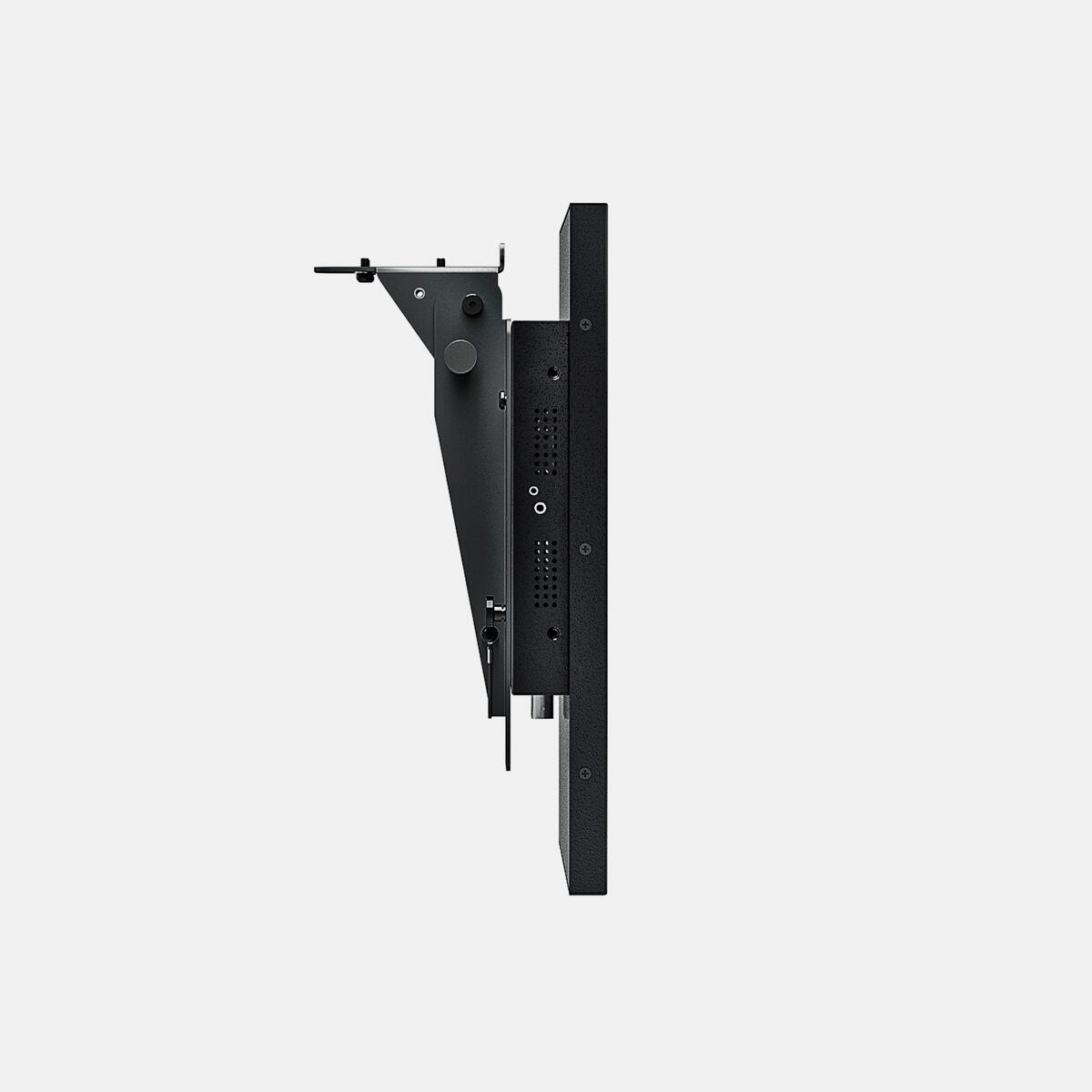

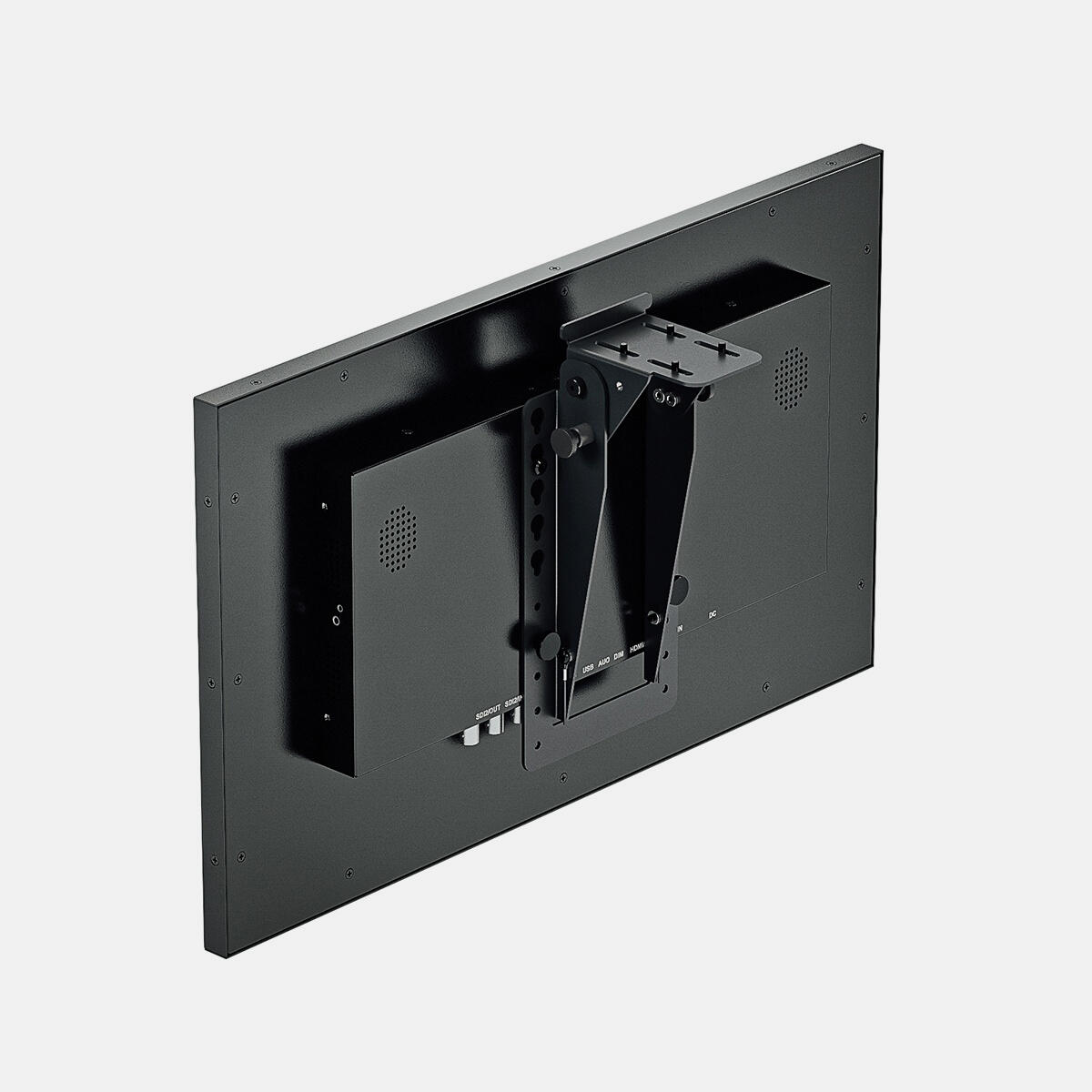

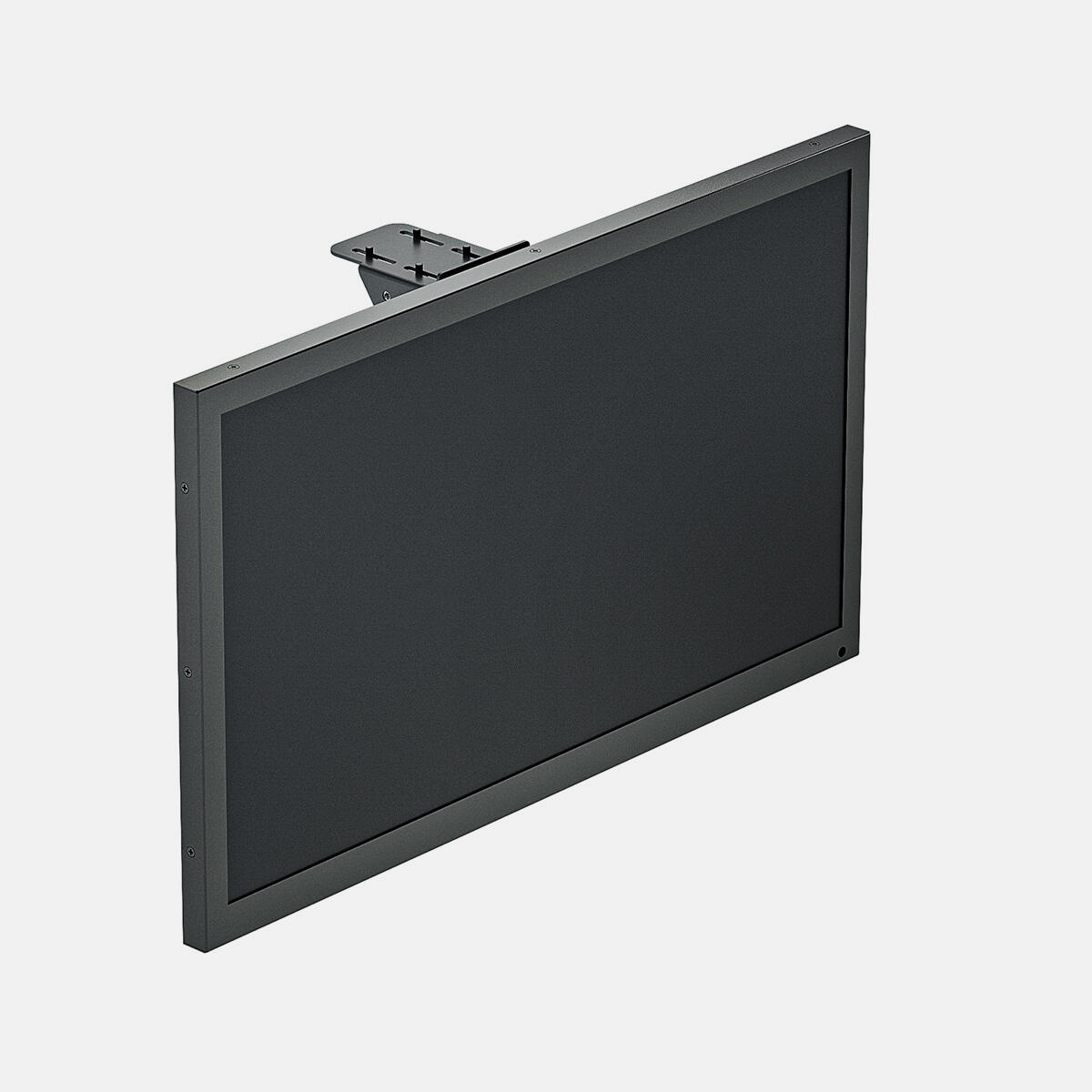

Included with the 22″ monitor is a VESA mount that can be fitted underneath the monitor of any Autocue Explorer or Pioneer teleprompter, and a 5kg counterweight to fit behind the camera mounting to offset the extra load at the front of the teleprompter. Note: if you’re planning to add this package to an Explorer Teleprompter you’ll need to purchase 19mm rods (P7011-1017) to mount the counterweight at the back of the camera carriage.
| Display Size | 22" 22" |
| Aspect Ratio | 16:9 16:9 |
| Brightness | 250Nits 250Nits |
| Contrast | 3000:1 3000:1 |
| Resolution | 1920 x 1080 1920 x 1080 |
| Connectivity | 3G/HD/SDI (2x input and 2x output), HDMI (input and output), VGA, CVBS 3G/HD/SDI (2x input and 2x output), HDMI (input and output), VGA, CVBS |
| Image Flip | Horizontal & vertical Horizontal & vertical |
| Power Input | 9-28V DC 9-28V DC |
| Power Consumption | 26.4W max 26.4W max |
| Power Supply | 110-240V AC 50/60Hz input, 12V DC, 5A max. output 110-240V AC 50/60Hz input, 12V DC, 5A max. output |
| Monitor Dimensions | 511 x 309 x 43mm 20.1 x 12.2 x 1.7" |
| Monitor Weight | 4.3kg 9.5lbs |
-

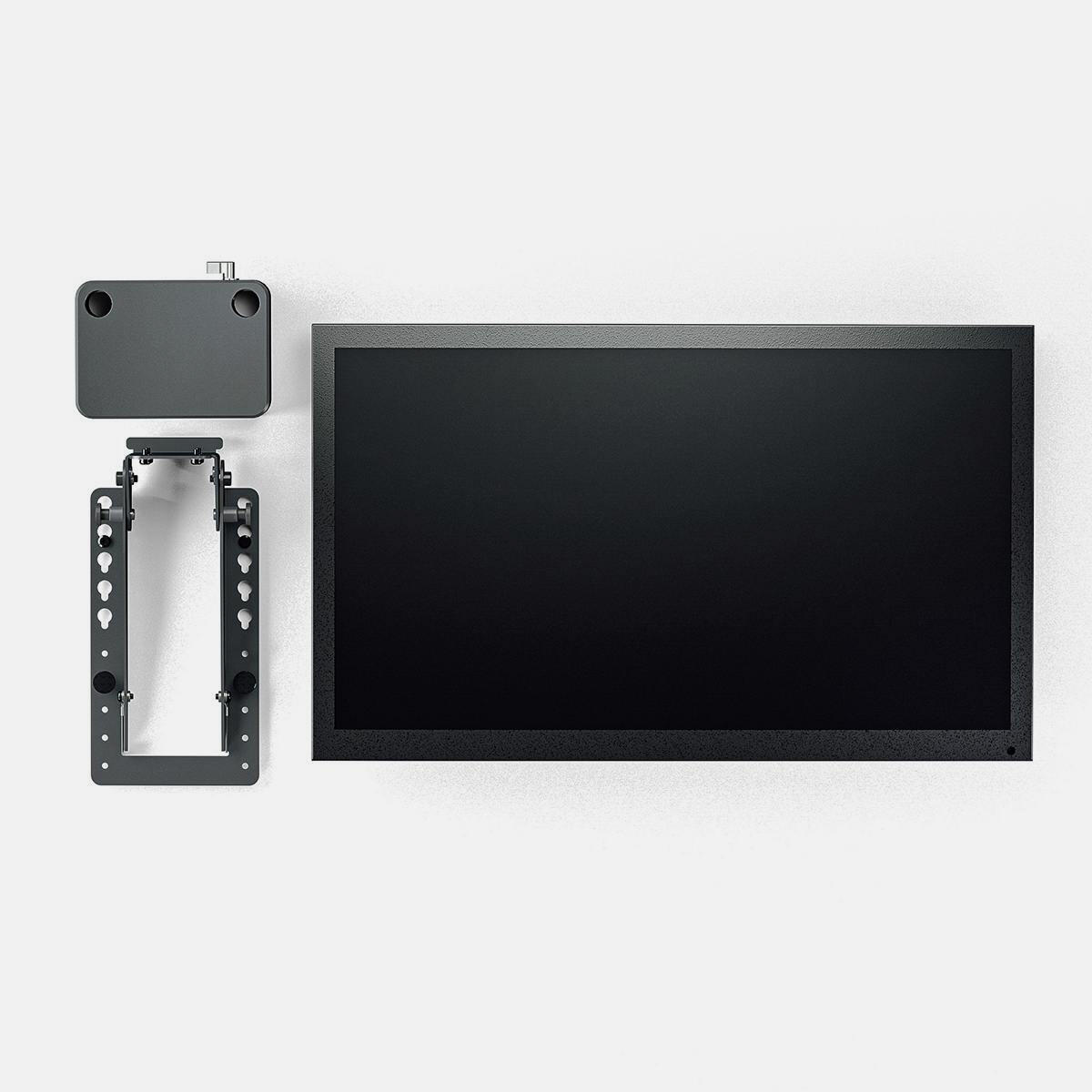

Monitor
-
PSU
-
HDMI cable, 10m
-
UK/EU or US IEC power cable
-
Monitor mounting
-
5kg counterweight
